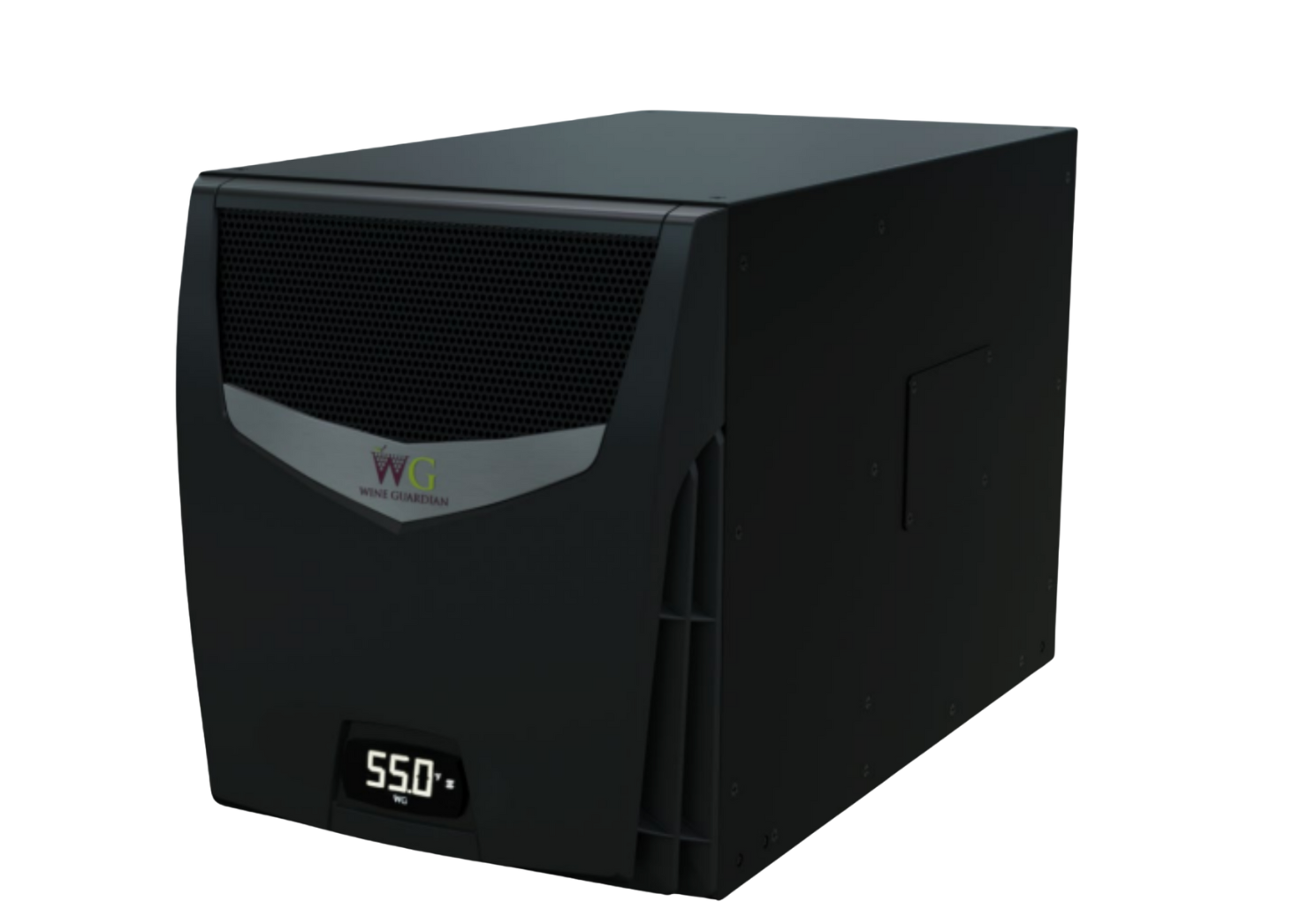

Wine Guardian TTW01B Sentinel Wine Cellar Cooling Unit 1000 BTU (Through-the-Wall)
TTW Universal Features
Advanced cooling technology across Classic, Sentinel, and Defender Series
Whisper-Quiet Operation
As quiet as 49 dB at 6 feet - significantly quieter than competitors. Designed to limit vibrations and operational noise that disturb the ambience of your wine space.
Fail-Safe Protections
Advanced protection systems including condensate overflow switch, loss-of-charge switch, and auto-reset high pressure switch to protect your system and cellar.
Eco-Friendly Refrigerant
Uses refrigerant with low global warming potential in compliance with U.S. environmental regulations. Only TTW to meet US regulatory standards.
Don't see what you are looking for? Let's connect.
Contact one of our design experts with questions or configuration help.
The TTW Sentinel Series is a versatile cooling system perfect for a wide range of cellar and wine display applications. This advanced 1000 BTU unit combines smart technology with precision cooling for the discerning wine collector.
Key Features:
- 1000 BTU/h cooling capacity (0.3 kW)
- Smartphone controllable from any location via Wi-Fi (iOS coming soon)
- Bluetooth connectivity included
- Eco-friendly R513A refrigerant with low global warming potential
- Integrated humidity sensor and humidistat for optional humidifier connection
- Condensate re-evaporation system - no drain connection required
- Larger Carel controller for advanced functionality
- Condenser inlet accepts temperatures from 50°F (10°C) to 125°F (52°C)
- Compatible with previous wall sleeves
- Power supply: 230V 50Hz or 120V 60Hz
Advanced Sentinel Features:
- Wi-Fi controls for remote monitoring and adjustment
- No condensate drain required thanks to re-evaporation technology
- Combined thermostat and humidistat functionality
- All Classic Series features included
- Versatile system suitable for most applications
Universal TTW Benefits:
- Whisper-quiet operation designed to limit vibrations and noise
- Fail-safe protections: condensate overflow switch, loss-of-charge switch, auto-reset high pressure switch
- Easy DIY installation - no licensed contractor required
- USA-designed and assembled quality
- Advanced control features with three control modes (User, Service, OEM)
- Energy efficient design meets US DOE efficiency standards
- Only TTW to meet US regulatory standards
Installation & Compatibility:
- Installs between wall studs for versatile mounting applications
- Compatible with existing wall sleeve installations
- Simple slide-through installation process
Wine Guardian Through-the-Wall Collection
Compare our three wine cooling solutions
| Specifications |
Classic
Essential
|
Sentinel
Advanced
|
Defender
Premium
|
|---|---|---|---|
| BTU Capacity | 1000, 2000, 4000 BTU/h | 1000, 2000, 4000 BTU/h | 1000, 2000, 4000 BTU/h |
| Power Supply | 230V 50Hz or 120V 60Hz | 230V 50Hz or 120V 60Hz | 230V 50Hz or 120V 60Hz |
| Bluetooth Control | |||
| Wi-Fi Control | Not available |
iOS coming soon
|
iOS coming soon
|
| Humidity Sensor | Not available | ||
| Condensate Management | Drain required | Self-evaporating | Self-evaporating |
| Controller | Standard Carel | Advanced Carel | Advanced Carel |
| Ultra Quiet Package | Not available | Not available | |
| Exterior Wall Package | Not available | Not available | |
| Temperature Range | 50°F to 125°F ambient | 50°F to 125°F ambient |
0°F to 125°F ambient 42°F to 75°F cellar |
| Sound Level | Standard operation | Standard operation | 49 dB at 6 feet |
| Installation | DIY friendly | DIY friendly | DIY friendly |
| Wall Sleeve Compatibility | Previous sleeves compatible | Previous sleeves compatible | Previous sleeves compatible |
| 1000 BTU | $2,950 | $3,950 | $4,950 |
| 2000 BTU | $3,950 | $4,950 | $5,950 |
| 4000 BTU | $4,950 | $5,950 | $6,950 |
